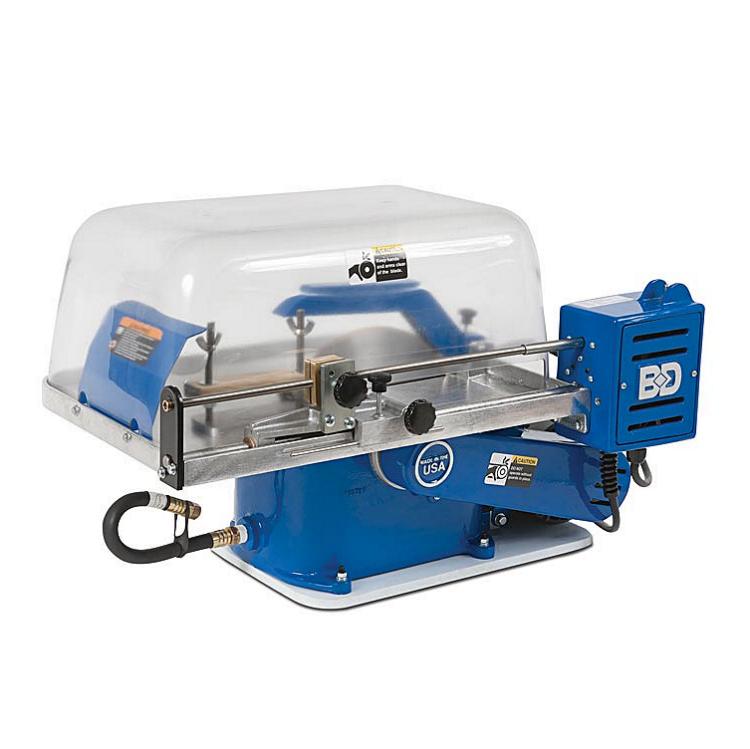

BD-10 Power Feed Trim Saw

BD-10 Power Feed Trim Saw

$1,775.00

Introducing the Barranca Diamond BD-10 power feed trim saw with 1/3 HP motor, it’s perfect fro cutting facet material, opals and rock slabs of all types. Cut large slabs easily with the 15-3/8″ x 19-1/2″ work surface.

BD-10 Features:

  • All cast aluminum tank, table, blade guard, and power fee box
  • Hinged table top for ease of slude/oil and blade removal
  • Vertical rock vise clamping system
  • Vise rotates out of the way for manual trim saw use
  • Sealed blade arbor-bearing assembly
  • Clear plexiglass hood
  • Brass clutch plate engage/disengagement system
  • Single speed (3/16″ per minute feed rate) power feed system
  • Mounted on a 1/2″ polypropylene base
  • 303C Professional Lapidary Diamond Blade (10 x 0.040 x 5/8)

Out of stock

Email when stock available

SKU: 168787 Categories: , , Tags: ,

Description

Motor      110V 60Hz
Horsepower1/3 HP
Amperage5.8
Motor RPM1725
Blade Shaft1/2″
Blade Capacity8″-10″
Depth of Cut: Manual Cutting 3″
Depth of Cut: Power Feed Cutting2 5/8″
Max Vise Opening3 1/4″
Blade Size 10″
LxWxH 27″ x 17″ x 19″
Saw Weight70 lbs
Shipping Weight80 lbs
Part #168787
220 Volt/50Hz Part #169201

This unit will be shipped direct from the factory.  May take up to 6 weeks.

Always wear personal protection equipment whenever using power tools, rock picks, chisels or any other impact tools which could cause injury or damage. Your eyes and hearing are too important not to protect.
